Pioneering sensor technology. Targeted detection
Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the detection area of the sensors cover sections of the greatest possible length. Tried and proven ove and again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an alge of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.
2 – 1000 lux
ideal 2,5 – 5 m
5 sec- 15 min
infrared sensor 360°
max. 20 x 4 m
IP20
2000 W max.
Teach mode
| European Article Number (EAN) | 4007841 033804 |
| Type | Motion detector |

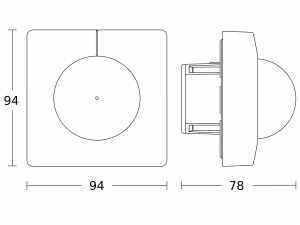

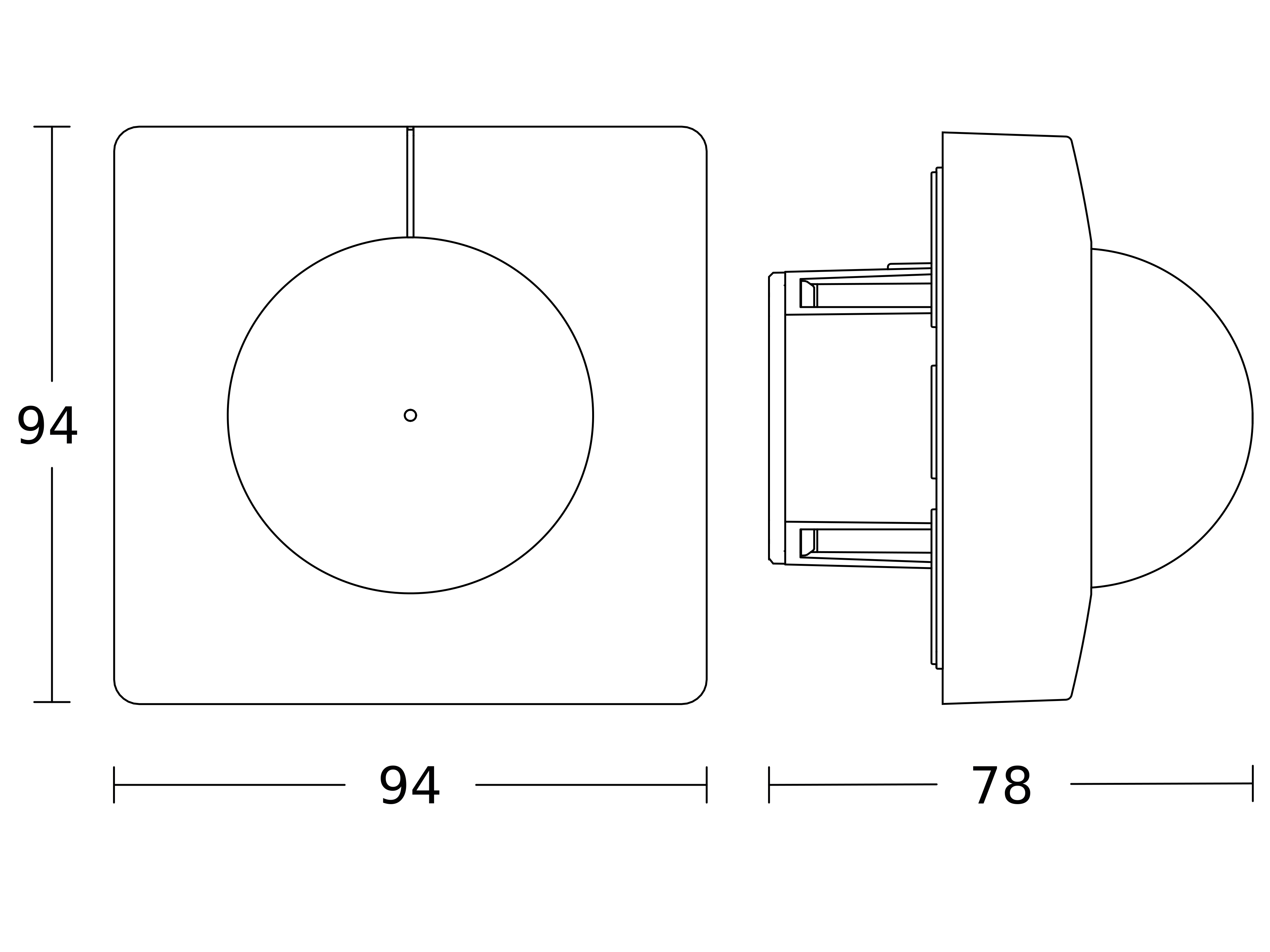

| Dimensions (L x W x H) | 78 x 94 x 94 mm |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Sensor Technology | passive infrared |
| Application, place | Indoors |
| Installation | Surface wiring, Ceiling |
| Electronic scalability | No |
| Mechanical scalability | No |
| Mounting height | 2,50 – 5,00 m |
| Optimum mounting height | 2,80 m |
| Detection angle | 360 ° |
| Angle of aperture | 45 ° |
| Sneak-by guard | Yes |

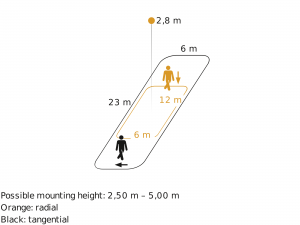

| Reach, radial | 12 x 6 m (72 m²) |
| Reach, tangential | 23 x 6 m (138 m²) |
| Twilight setting TEACH | Yes |
| Twilight setting | 2 – 1000 lx |
| Time setting | 5 s – 15 Min. |
| Output | 2000 W |
| Constant-lighting control | No |
| Basic light level function | No |
| Functions | Normal / test mode, Manual ON / ON-OFF |
| Settings via | Remote control, Potentiometers, Smart Remote |
| With remote control | No |
| Interconnection | Yes |
| IP-rating | IP20 |
| Material | Plastic |
| Ambient temperature | -20 – 50 °C |
| Color | White |
| Colour, RAL | 9003 |
| Manufacturer’s Warranty | 5 years |
| Version | COM1 – concealed, sq. |
| Interface | COM1 (Switching light) |
| Sensor Technology | passive infrared |
